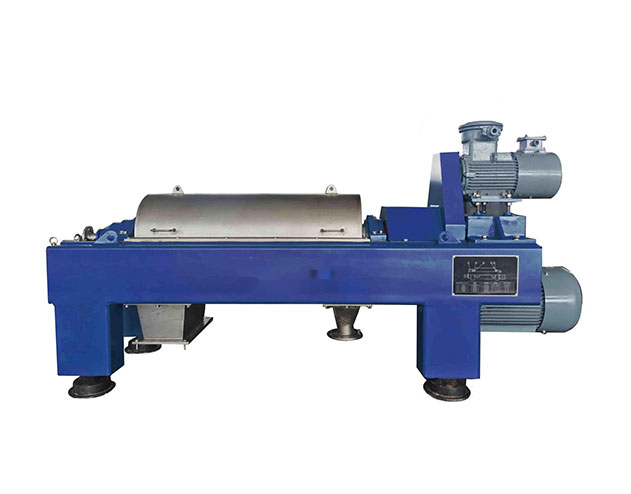

Horizontal centrifuge

Horizontal centrifuge is also called horizontal spiral discharge sedimentation centrifuge or drilling fluid centrifuge. Horizontal centrifuge uses the principle of centrifugal sedimentation separation to separate the suspension in drilling fluid. Horizontal centrifuges are divided into high-speed centrifuges and medium speed centrifuges according to the speed.

parameter

Number BZLW220-930 BZLW355-1250 BZLW550-2200
Type Variable frequency speed regulating  sludge centrifuge
Drum  diameter 220mm 350mm 550mm
Drum length 930mm 1250mm 2200mm
Speed 0-4500RPM 0-3200RPM 0-3000RPM
Max(G) 2835 2435 2436
Main motor  power 11Kkw 37kw 55kw
Sub motor  power 4kw 11kw 15kw
Drum  material Centrifugal casting of duplex stainless steel
Use Separate mini particle in oil sludge

introduce

Horizontal centrifuge is also called horizontal spiral discharge sedimentation centrifuge or drilling fluid centrifuge. Horizontal centrifuge uses the principle of centrifugal sedimentation separation to separate the suspension in drilling fluid. Horizontal centrifuges are divided into high-speed centrifuges and medium speed centrifuges according to the speed.

Characteristics and advantages of horizontal centrifuge:
1. The drum is made of high-quality SS316L or ss2205 duplex stainless steel by centrifugal casting, with high quality and long service life;
2. The slag outlet of the drum adopts cemented carbide sleeve or ceramic inlay, and the slag outlet is more wear-resistant;
3. The slag discharge surface of screw propeller is sprayed with tungsten carbide or embedded with cemented carbide blocks, which is more wear-resistant;
4. The bearing adopts German fag or Swedish SKF famous brand products to improve equipment stability and bearing service life;
5. High strength composite materials are used for shock absorption;
6. Constant speed or variable frequency control can be selected to facilitate customers to adjust the speed at any time to meet the requirements of different working conditions;
