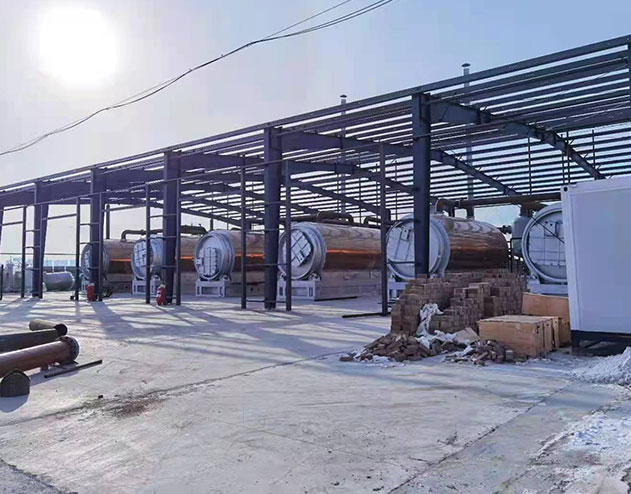

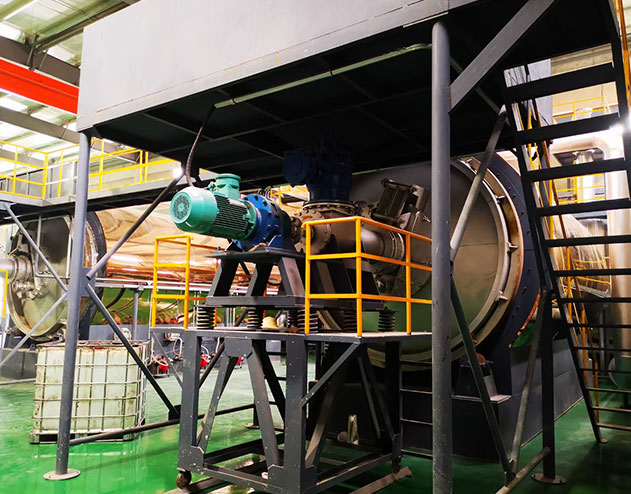

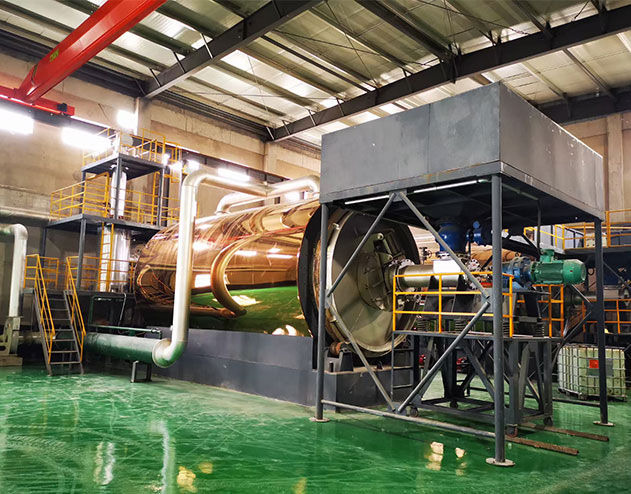

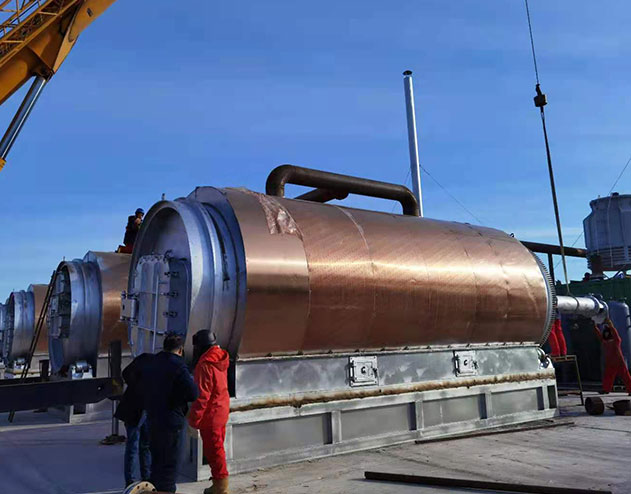

Pyrolysis Equipment

In anoxic environment, organic matter in oily sludge can be decomposed into solid carbon, liquid fuel oil, etc., which can be reused. It is found that the oil and gas can be recovered more effectively by pyrolysis of oily sludge, and the utilization value of residue can be developed again, which has good benefits. Meanwhile, the pyrolysis treatment is thoroughly and quickly disposed process.

parameter

Model FPJ-3 FPJ-10 FPJ-16
Reactor φ1400×4000 φ2600×6600 φ2800×7100
Material of Reactor(Accept customization) Q245R or Q345R QQ245R or Q345R Q245R or Q345R
Raw Material Tires,Rubber, Plastic, Oily Sludge, PCB Tires,Rubber, Plastic, Oily Sludge, PCB Tires,Rubber, Plastic, Oily Sludge, PCB
Structure Form Horizontal Horizontal Horizontal
Capacity 3 tone per batch 10 tone per batch 16 tone per batch
Oil yield 40~45% 40~45% 40~45%
Operating Pressure Constant pressure Constant pressure Constant pressure
Host speed 0~0.4rpm 0~0.4rpm 0~0.4rpm
Applicable fuel Coal/natural gas/LPG/ Diesel/wood/pyrolysis oil Coal/natural gas/LPG/ Diesel/wood/pyrolysis oil Coal/natural gas/LPG/ Diesel/wood/pyrolysis oil
Total Power 16.65kw 32.8KW 32.8KW
NoisedB(A) ≤85 ≤85 ≤85
Cooling Water cooling Water cooling Water cooling
Transmission mode Gear drive Gear drive Gear drive
Heating mode Directly Burning Directly Burning Directly Burning
Form of work Batch Batch or Semi continuous Batch or Semi continuous
Operation mode Manual Manual Manual
Foundation No Yes Yes
Equipment depreciation 5~8years 5~8years 5~8years
Type of shipping 40HQ×1 40FR×1&40HQ×2 40FR×1&40HQ×2

introduce

In anoxic environment, organic matter in oily sludge can be decomposed into solid carbon, liquid fuel oil, etc., which can be reused. It is found that the oil and gas can be recovered more effectively by pyrolysis of oily sludge, and the utilization value of residue can be developed again, which has good benefits. Meanwhile, the pyrolysis treatment is thoroughly and quickly disposed process. Pyrolysis equipment is an equipment that disposals oily sludge, waste tires, plastics and so on.

The pyrolysis products produced by the plant are divided into the following two types:
a) Batch pyrolysis equipment The pyrolysis equipment for periodic production is called intermittent pyrolysis equipment, which puts waste into the reactor for heating and pyrolysis, collects the oil and non-condensable combustible gas, residue and then cools down to discharge solid products.
b) Continuous pyrolysis equipment The pyrolysis equipment that continuously puts waste into the reactor for heating and pyrolysis to produce oil, non-condensable combustible gas and residue is called continuous pyrolysis equipment.
Characteristics of pyrolysis system:
(1)Dispose thoroughly, and the oil content of the treated residue can be lower than 0.3%;
(2)Oil can be recycled;
(3)The equipment of cost is low and has the advantages of small area, simple and convenient operation;
(4)It can realize closed feeding and discharging, micro negative pressure operation and no leakage of harmful gas,
(5)Non-condensable gas is directly applied to mini burner as fuel, improve resource utilization efficiency and reduce system operation cost;
(5)Non-condensable gas is directly applied to mini burner as fuel, improve resource utilization efficiency and reduce system operation cost;
(6)The rude oil burner which use the recovery oil as fuel for optional, improve resource utilization efficiency and reduce system operation cost;
(7)Do not add any agents in the processing process;
