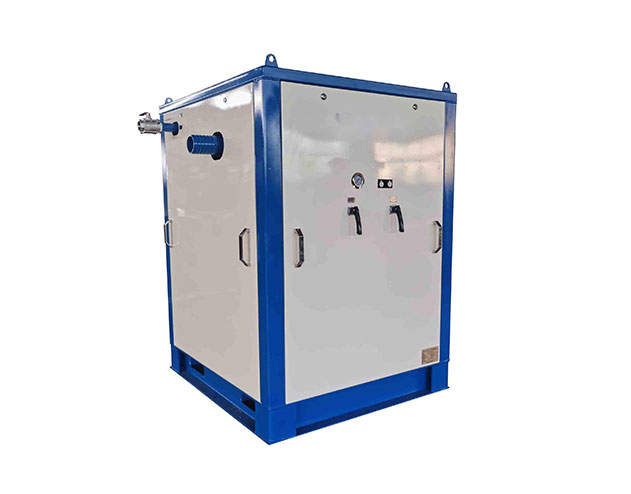

Vacuum solids convey pump

Vacuum solids convey pump is a kind of vacuum conveyor with high load and strong suction, also known as solid conveyor or drilling cuttings conveyor, sludge vacuum pump, etc. The structural design enables it to operate in the difficult environment with low maintenance rate. The conveyor has compact structure and is convenient for transportation, installation and use. Meanwhile, there are almost no wear parts in the conveyor body.

parameter

Model BZVP-20 BZVP-40
Max capacity 20m³/h 40m³/h
Inlet/outlet size 3’’ 4’’
Inlet solids diameter <50mm <75mm
Air demand 7.9m3/min 17m3/min
Pressure request 550-690Kpa 550-785Kpa
Vacuum degree 85Kpa(25 inch HG)
Max suction distance 50m
Max discharge distance 500m 1000m
Max solids content 100%(powder)
Use Convey oil sludge to pre-mix&heat tanks

introduce

Vacuum solids convey pump is a kind of vacuum conveyor with high load and strong suction, also known as solid conveyor or drilling cuttings conveyor, sludge vacuum pump, etc. The structural design enables it to operate in the difficult environment with low maintenance rate. The conveyor has compact structure and is convenient for transportation, installation and use. Meanwhile, there are almost no wear parts in the conveyor body.



The vacuum solids convey pump has a wide range of applications, such as waste slurry and drilling cuttings, slurry and tail slurry, mud pit cleaning, hazardous waste recycling, oil sludge, tank bottom slag cleaning, tank bottom cleaning of transport ships, material transportation of bulk tanks and silos, transportation of sand, fine sand and fracturing sand, powdery materials, animal feces, etc.

Characteristics and advantages of vacuum solids convey pump:
1. Pneumatic operation, without power supply, can meet the use requirements of all explosion-proof areas;
2. The integrated sealing design can meet the requirements of highly corrosive workplaces, wet environment in the field and anti-collision protection design for hoisting;
3. Strong self-priming capacity, long conveying distance, material suction depth of 6-10m, suction distance of 50m and discharge distance of 1000m;
4. It can be used to transport a wide range of materials, from liquid and mixed liquid to solid block particles and powder;
5. The maximum particle size of solid materials that can be transported is 75mm, and the solid content of mixed liquid can be transported up to 80-100%;
6. The main structure of the conveyor is compact, the floor area is small, the working efficiency is high, and it is easy to move;
7. There are no rotating parts, conveying parts and sealing parts in the conveyor body, which is not easy to wear and has a long service life;
8. The conveyor includes automatic continuous operation mode and semi-automatic operation mode for convenient and simple operation and maintenance;
